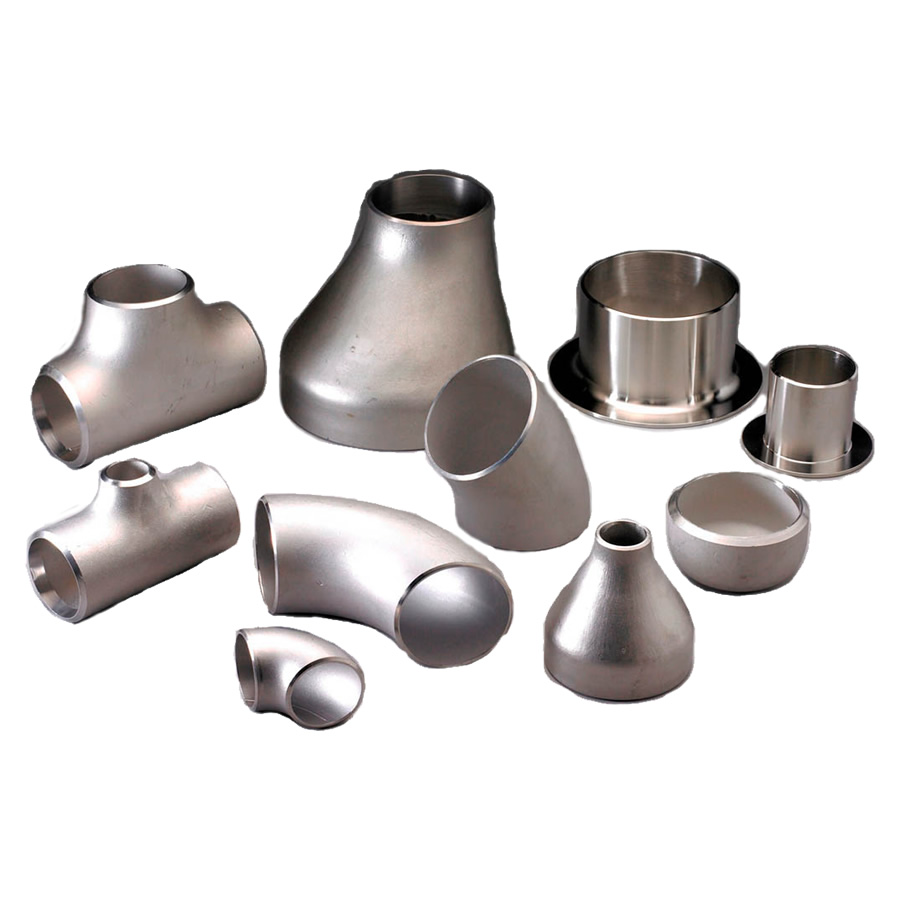

BUTTWELD FITTINGS

BUTTWELD FITTINGS

SIZE RANGE

  • SEAMLESS : 1/4 ” NB TO 24” NB
  • WELDED : 1/4 ” NB TO 48” NB
  • WALL THICKNESS : SCH.5S TO SCH. XXS.

TYPES

  • 90 ° ELBOW (1D/1.5D/3D/5D)
  • EQUAL TEE
  • END CAP
  • 45 ° ELBOW
  • REDUCING TEE
  • LONG / SHORT STUB END
  • 180 ° LR RETURN
  • CONCENTRIC REDUCER
  • LONG RADIUS PIGGABLE BEND
  • 180 ° SR RETURN
  • ECCENTRIC REDUCER
  • AS PER DRAWING

Description

MATERIAL

  • STAINLESS STEEL : AISI 301, 302, 303, 304, 304L, 310, 316, 316L, 317, 321, 347, ASTM 201, 202 A 240, SA 240, ASTM 201, 202 A 240, SA 240, 410, 416, 420, 430, 431, 904L, PH13-8Mo, 17-4ph, 15-5ph, 17-7ph, Ph15-7 Mo, 254Smo, Al-6Xn, 654SMO
  • DUPLEX & SUPER DUPLEX : UNS – S 31803 / 32760, UNS – 32750
  • ALLOY STEEL : ASTM A182 F1, F5, F9, F11, F22, F91 ETC.
  • CARBON STEEL : ASTM A105/ 105N A694 F42/46/52/56/60/65/70/A 350 LF2 CLASS 1/2
  • NICKEL ALLOYS : 201, 200
  • MONEL ALLOYS : 400, K-500
  • INCONEL : 600, 601, 625, 825, 800/ 800H/ 800HT
  • HASTALLOY : C22, C276, B-2000
  • TITANIUM : GR. 1, 2, 5, 7.
  • OTHER : TANTALUM, SMO 254, ALLOY 20 / 330
  • ALUMINIUM , BRASS, COPPER, COPRONICKEL
